RL-40252 | Ø137mm | Adjustable Downlight
SPECIFICATIONS
Model no. RL-40252
Dimension (mm) 137Dia x 160H
Cutout 127mmDia
Cutoff angle 30°
Tilting angle 25°
Reflector Dark light reflector
LED TYPE Citizen
Wattage 20W/ 25W/ 30W

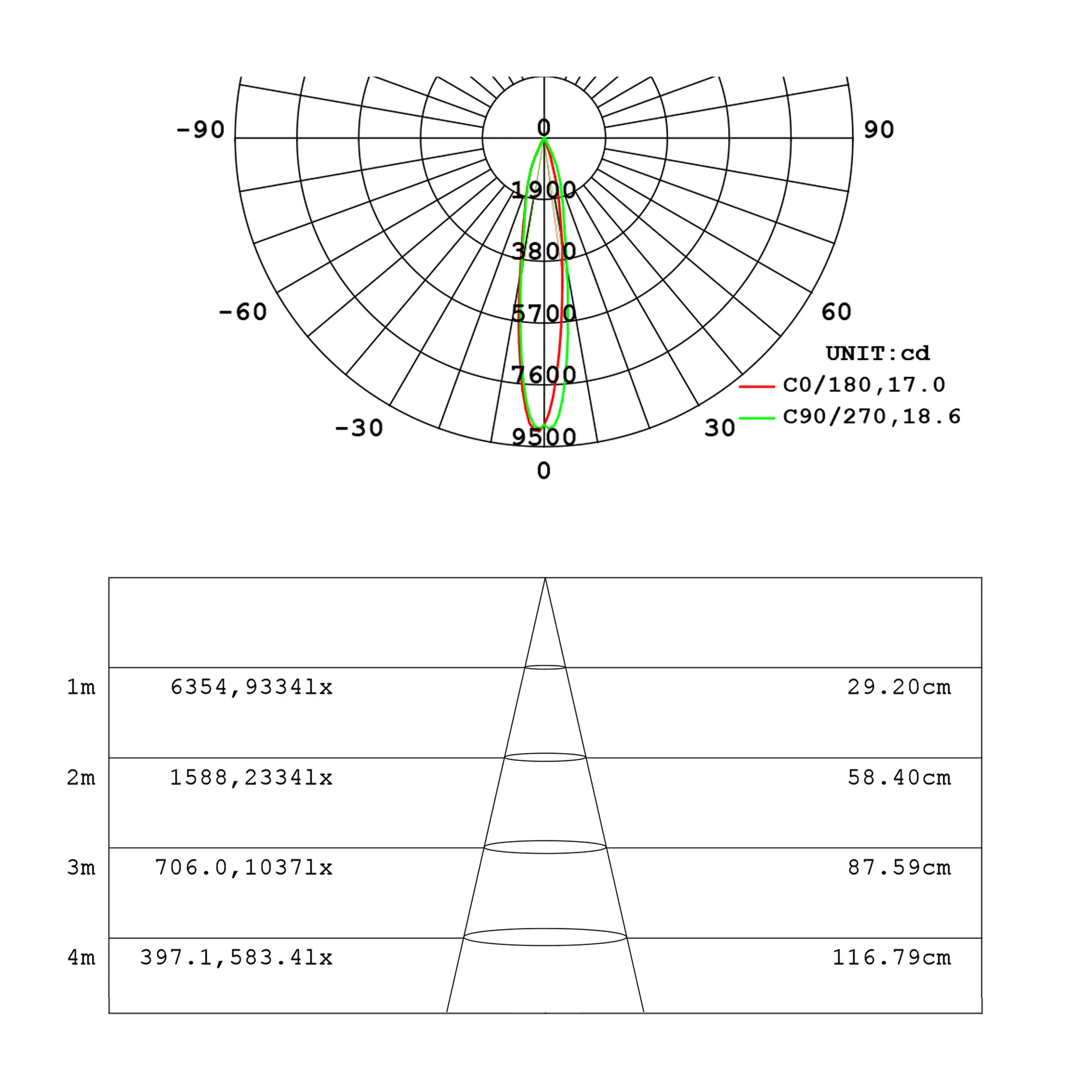

Beam angle 18°/ 23° /32°
Lumen 20W: 1372/ 1391/ 1297 lm
18°/ 23° /32° 25W: 1582/ 1608/ 1487 lm
30W: 1658/ 1669/ 1653 lm
Efficiency 20W: 68/ 69/ 64 lm/W
18°/ 23° /32° 25W: 63/ 64/ 59 lm/W
30W: 55/ 55/ 55 lm/W
CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+
Installation
Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim
Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
